Threaded Rods and Resin Fixings Guide

Threaded rods and resin anchors are useful when a fixing needs more bite than a normal plug and screw, especially for heavy brackets, outdoor frames and awkward masonry. The important bit is not just the rod. It is the wall, the drilled hole, the cleaning, the resin choice and the cure time.

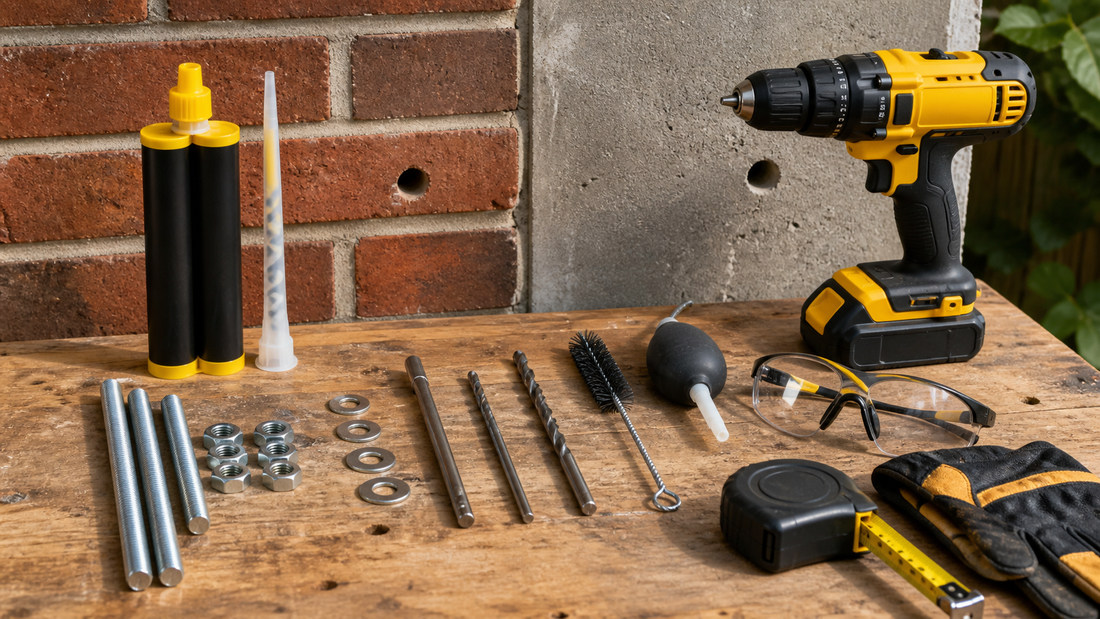

Threaded rods, resin anchor cartridge and masonry fixing tools laid out before drilling
Safety note: Do not use resin fixings to guess your way around a weak wall. Check the wall material, condition, edge distance and the load being fixed. For structural, overhead, balcony, awning, guardrail or safety-critical loads, use the fixing manufacturer's data and get a competent installer or structural advice.

1. Check what you are fixing into

Before drilling, identify the substrate. Solid brick, dense block, concrete, engineering brick, lightweight block and hollow masonry all behave differently. A fixing that works in one can be poor in another.

  • Look for cracked bricks, blown faces, soft mortar, loose render and damp damage.
  • Avoid fixing too close to brick edges, bed joints, corners, lintels or previous holes.
  • Check whether the wall is solid, cavity, single skin or faced with render/cladding.
  • For hollow materials, use resin sleeves or a fixing system designed for that material.

2. Drill straight and clean the holes properly

Cleaning drilled brick holes before resin anchoring threaded rods

Resin needs a clean hole to bond. Dust left in the hole is one of the easiest ways to make a strong-looking fixing weak.

  • Use the drill size, hole depth and embedment stated for the resin and rod size.
  • Drill square to the wall so the bracket sits flat and the rod is not bent under load.
  • Clean with a brush and blow pump in repeated cycles until dust stops coming out.
  • Keep spare nozzles ready because mixed resin can cure inside the nozzle quickly.

3. Inject resin from the back of the hole

Discard the first squeeze from a new nozzle until the resin colour is evenly mixed. Fill from the back of the hole outwards so you do not trap air pockets.

  • Do one hole at a time if the resin has a short working time.
  • Insert the threaded rod with a slow twisting motion.
  • Leave enough rod showing for the bracket, washer and nut.
  • Wipe excess resin before it cures, but do not disturb the rod afterwards.

4. Let it cure, then fit the bracket

Threaded rods set into resin in brickwork ready for a bracket after curing

Cure time changes with temperature. Cold masonry can slow curing dramatically, so use the resin manufacturer's time chart and only tighten the nuts once the fixing has cured.

  • Use washers that fully support the bracket holes.
  • Tighten evenly and avoid crushing soft brick or distorting the bracket.
  • Use stainless or galvanised fixings outdoors where corrosion matters.
  • Recheck exposed external fixings after the first strong weather and as part of seasonal maintenance.
Common pitfall: Resin and threaded rod can be excellent, but they do not turn weak brick, loose mortar or thin single-skin construction into a strong structure. The load path still has to make sense.

Useful tools

  • Masonry drill and correct diameter bit
  • Resin cartridge, nozzles and threaded rod
  • Hole cleaning brush and blow pump
  • Spanners, washers and nuts
  • Gloves, eye protection and dust control
